1、Efficiency: 140-150pcs/min

2、Weight: 980kg

3、Total power: 2.5 kw

4、Working structure: 6 roll dual ultrasonic wave, 5 servo

5、Voltage: 220V50HZ

6、Compressed air: 0.3-0.4MPa

7、Outline size (L X W X H) : 4700 X 3400 X 1900 (mm)

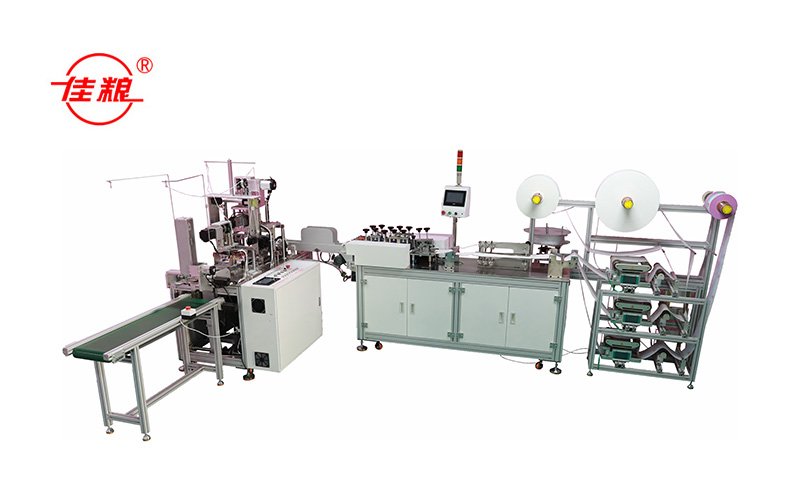

    JKPQ175/95D fully automatic (positioning) mask machine is composed of automatic tension rectifying part, mask folding part, nose bridge bar feeding part, mask sheet hot melt shaping part, mask sheet conveying across the bridge part, ear band welding part and mask finished product assembly line part. This production line, after workers install raw material coil and nose bridge coil, tension rectifying system adjusts position, automatically completes folding, nose bridge feeding, heat synthesis forming, spot welding ear band to get standard finished mask, and then presses it down to mask finished product line. The produced mask is standard and suitable to wear, which can be used for medical and civil use.

1、 It can produce 160,000 masks per day;

2、 Automatically tension and rectify, according to the set tension;

3、 It needs only one person to produce and work;

4、 Production efficiency is controlled by the input digital control without manual adjustment control;

5、 Alarm information is complete, convenient for troubleshooting;

6、 The mechanical structure is stable and reasonable with few faults;

7、 One-click conversion for children and adults mask machine;

8、 The slice accuracy is within 1 mm.
